Cutting width 45 cm (18 inches) The cutting frequency is 120 cuts per meter

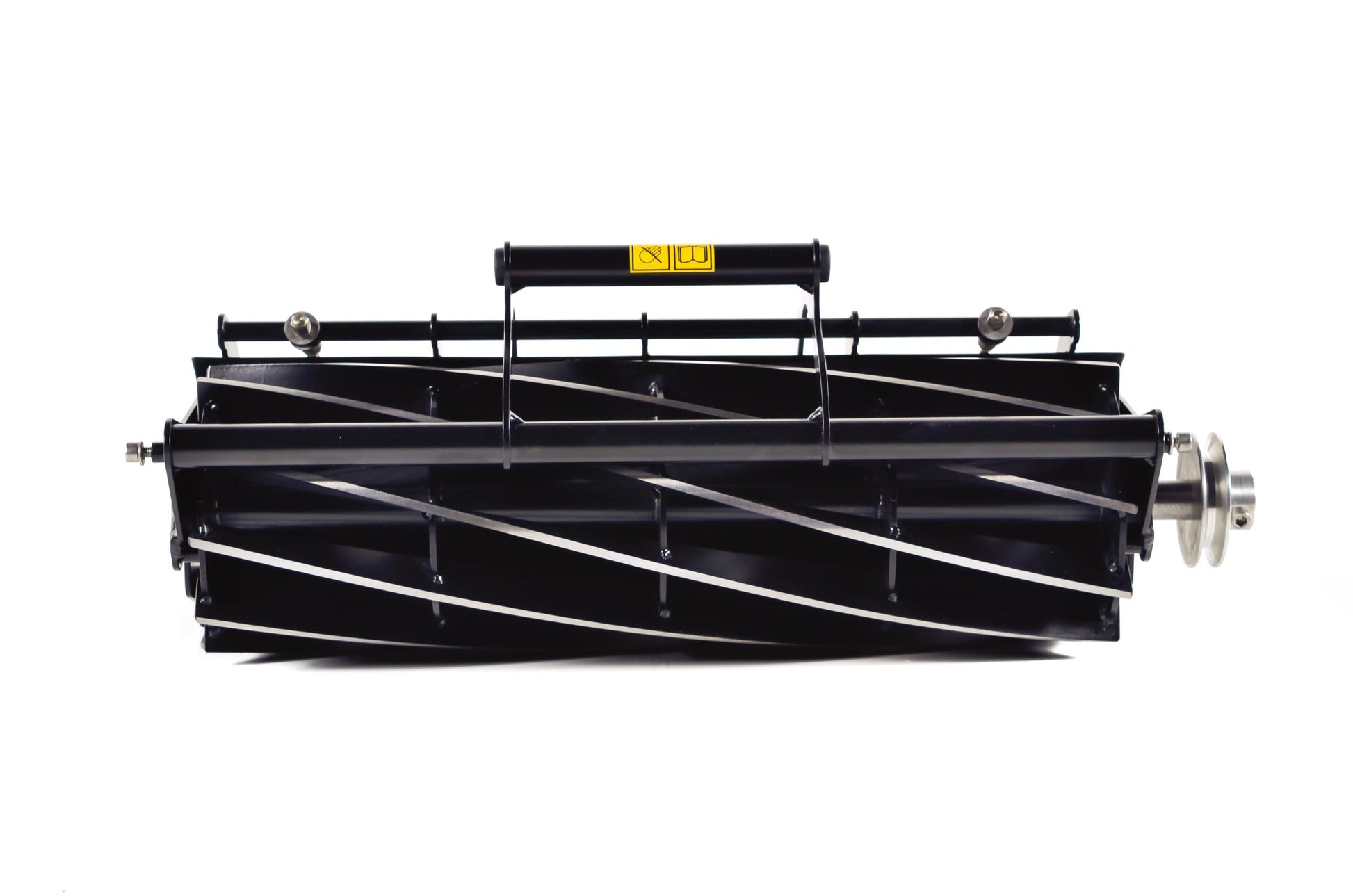

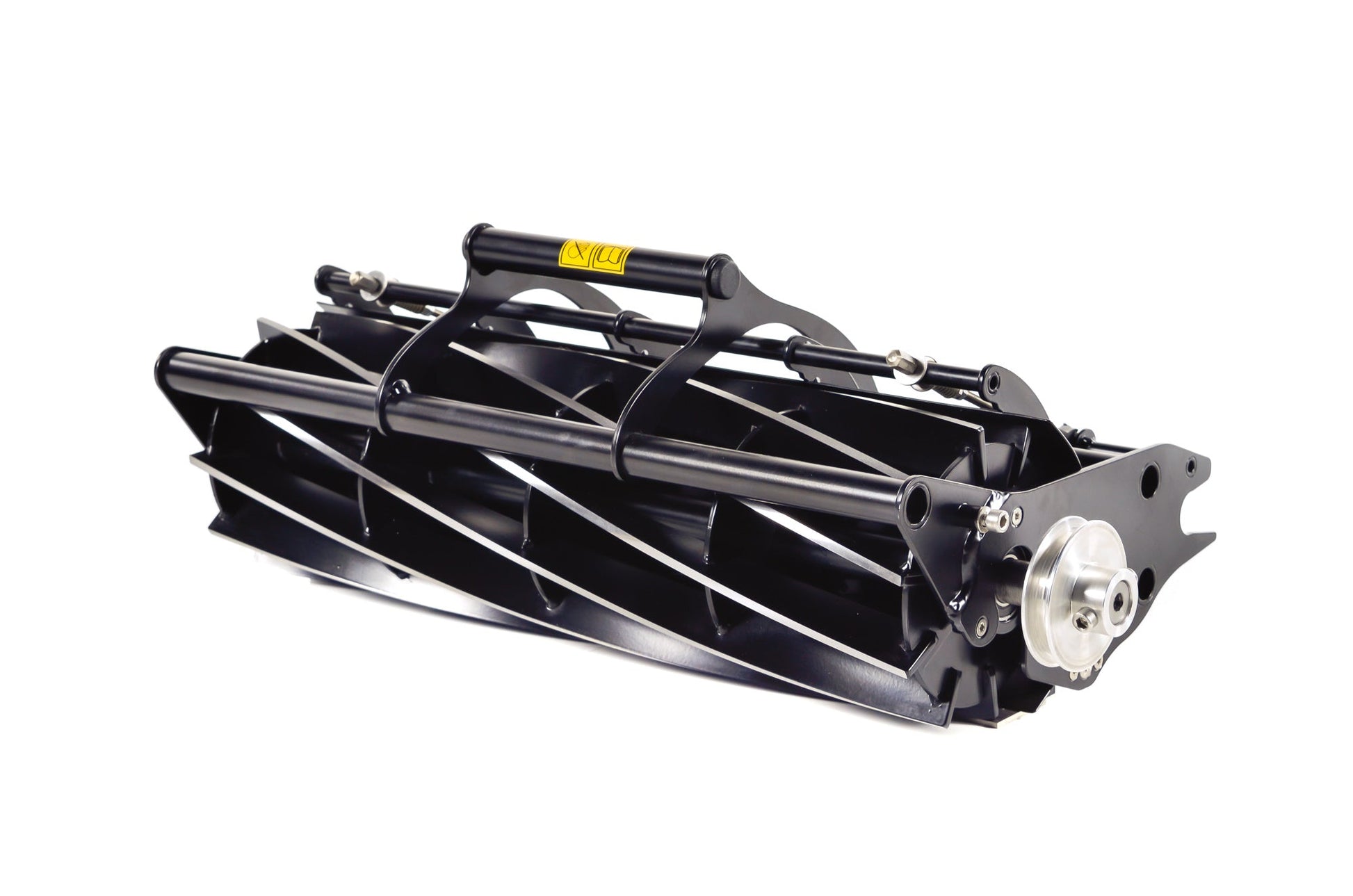

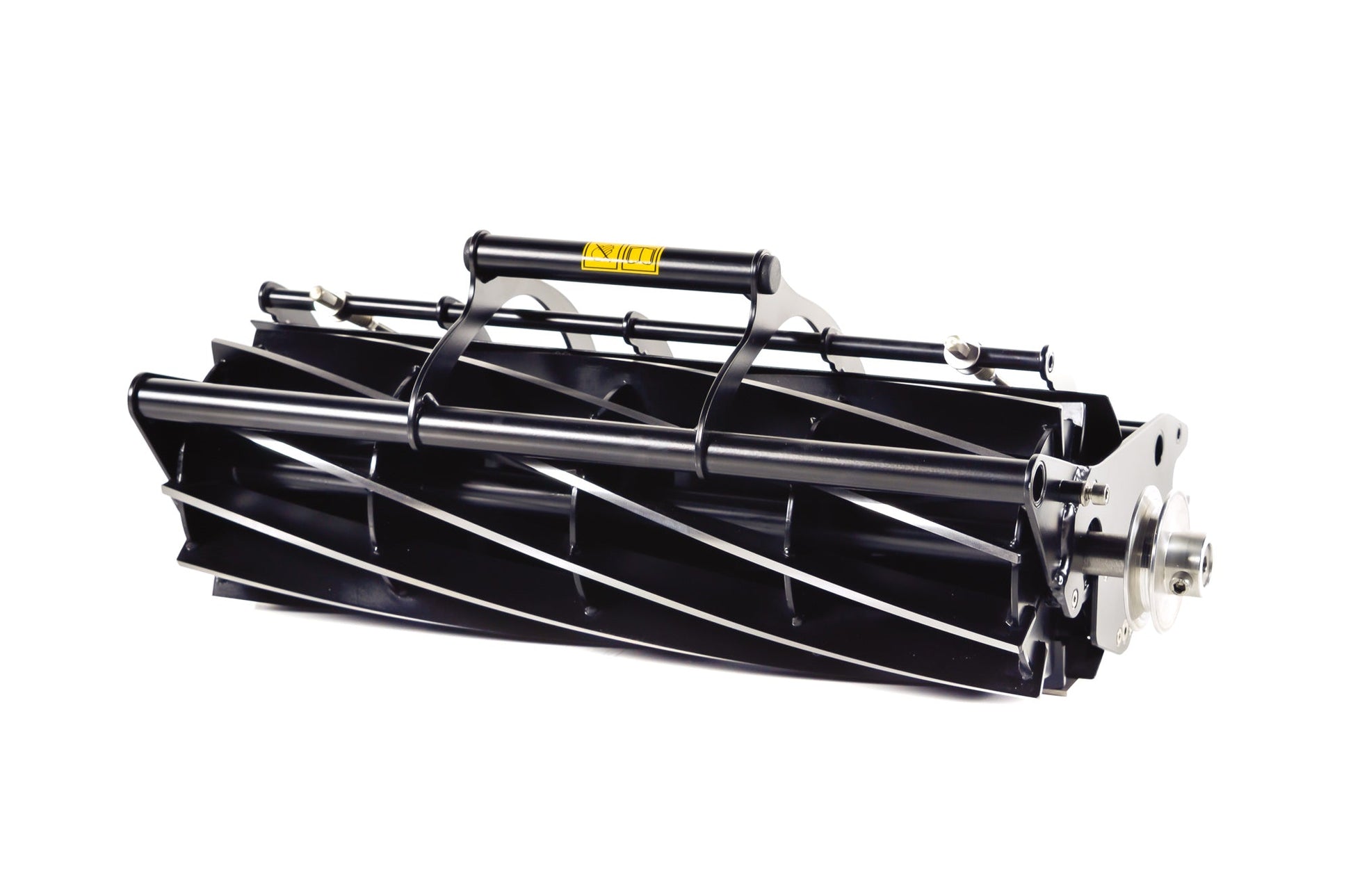

The 10 blade Reel Cartridge is our premium high-quality reel that can be used on a golf course green, lawn bowling green or by a homeowner who enjoys mowing frequently and keeping the lawn looking great.

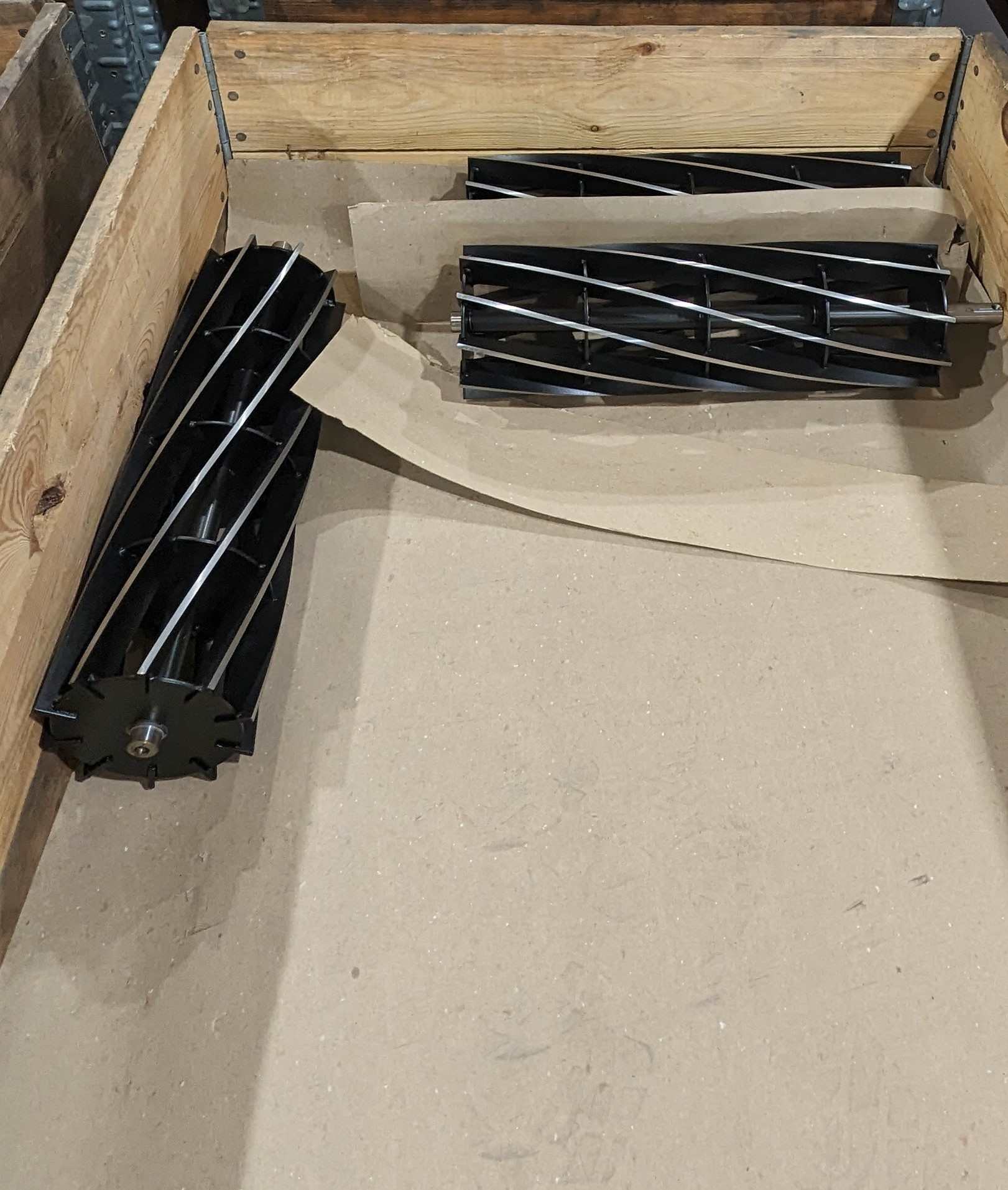

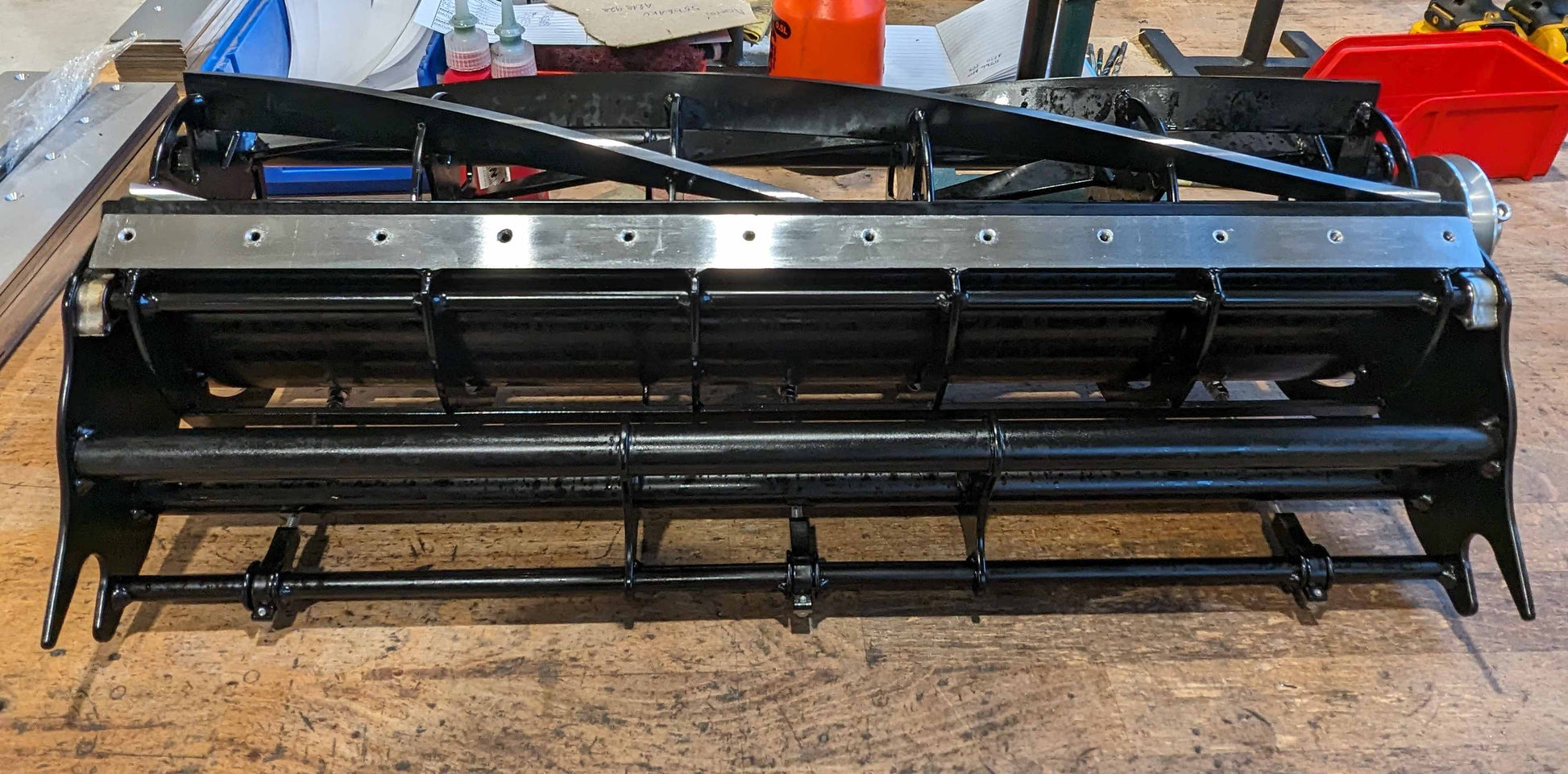

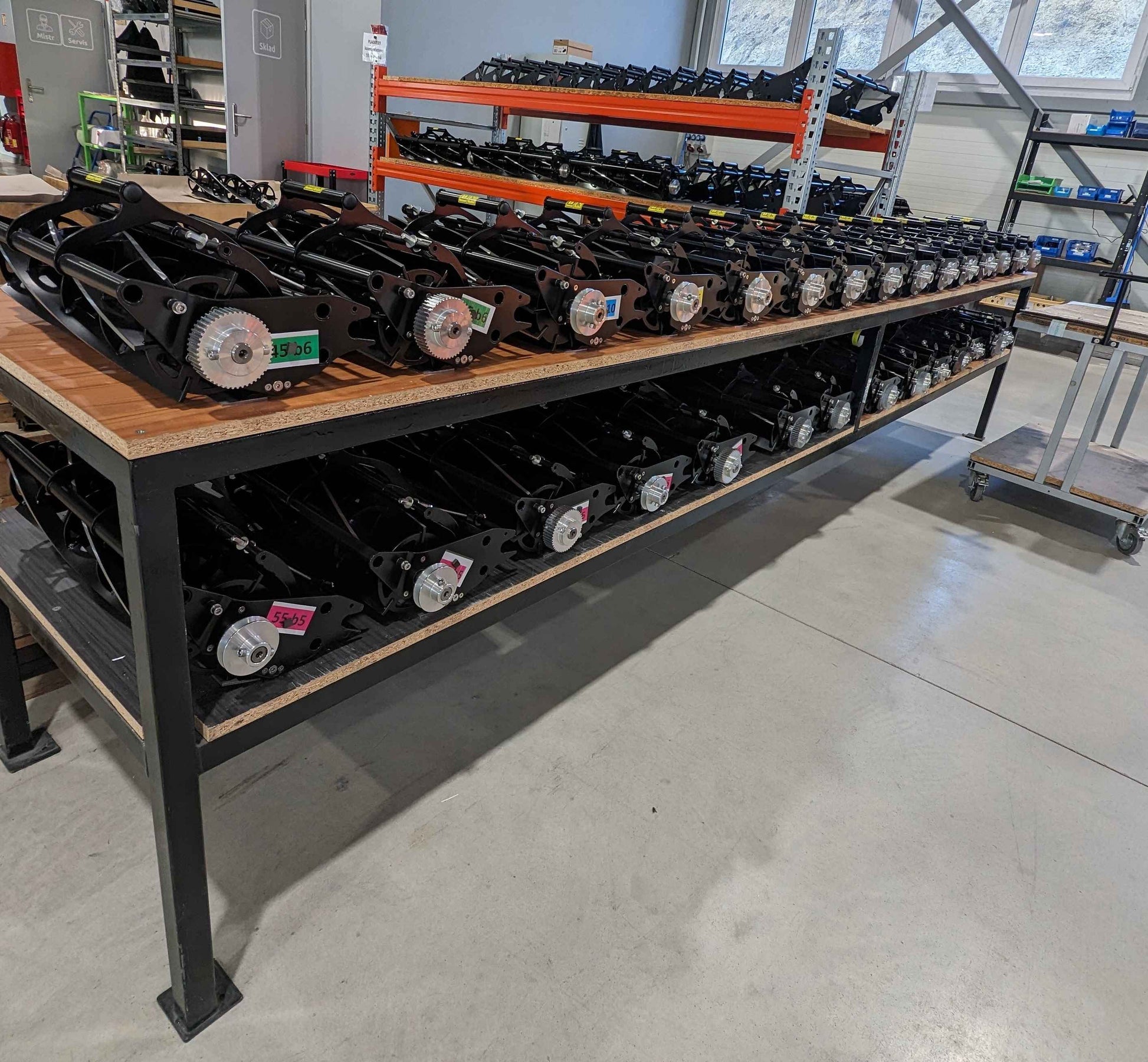

The Swardman Lawn Reel Cartridge is designed and manufactured for years of tough service. The 5 mm blades and blade carriage are laser cut from steel sheet. Blades are individually bent into shape in a jig, fitted and welded into the reel carriage. The shaft cut, turned and finished. The Knife bed is laser cut and machined and ground flat. Cover is stamped from steel sheet and braked into shape. All parts are inspected, racked, degreased, Powder coated by hand. Then cured and baked a temperature to ensure a tough and durable finish. The Coated Reel is jigged and sharpened on a CNC grinder. Final Hand Assembly of each Reel Cartridge ensures the proper clearance is set. Then a Serial number and label is assigned before packaging. Our Cartridges are completely manufactured at our Factory.
In a lush, high-density lawn, a 5 or 6 blade reel can create the “corduroy effect” - notches in the lawn caused by using a reel with a lower cut rate per meter. A higher cut rate can eliminate this effect and straighten the densest lawns. The ideal use of this reel is when mowing shorter than 1/2". The cutting rate is 120 cuts per meter ensures a maximum of cut of the sward, creating the smoothest mown lawn.

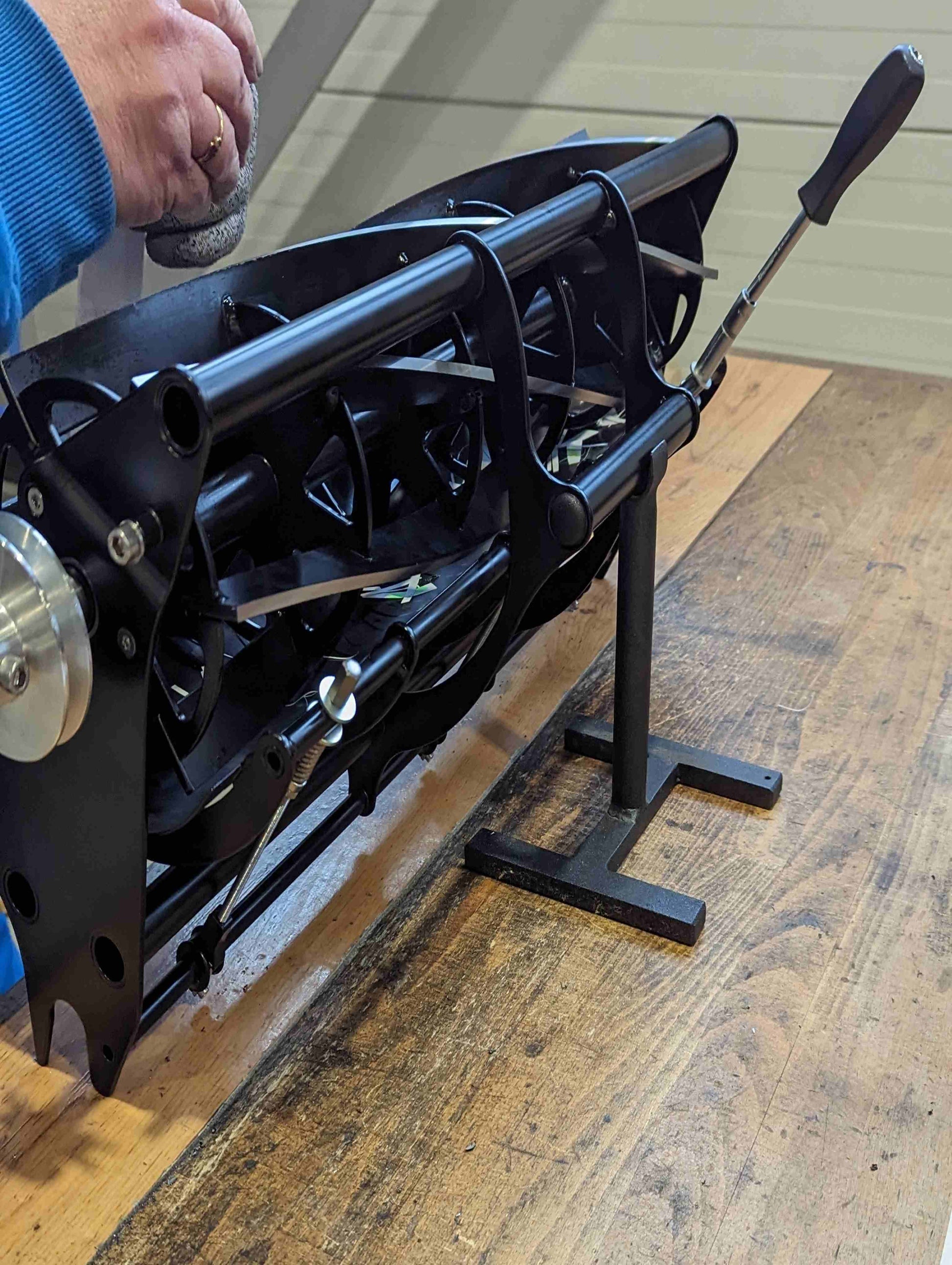

The Swardman Cartridge System advantage. As the reel wears the clearance between the reel blades and the bed Knife can be adjusted by hand. See our service advise. If the reel is damaged or needs to be sharpened contact us for our sharpening service or for details on our reel cartridge exchange program.
